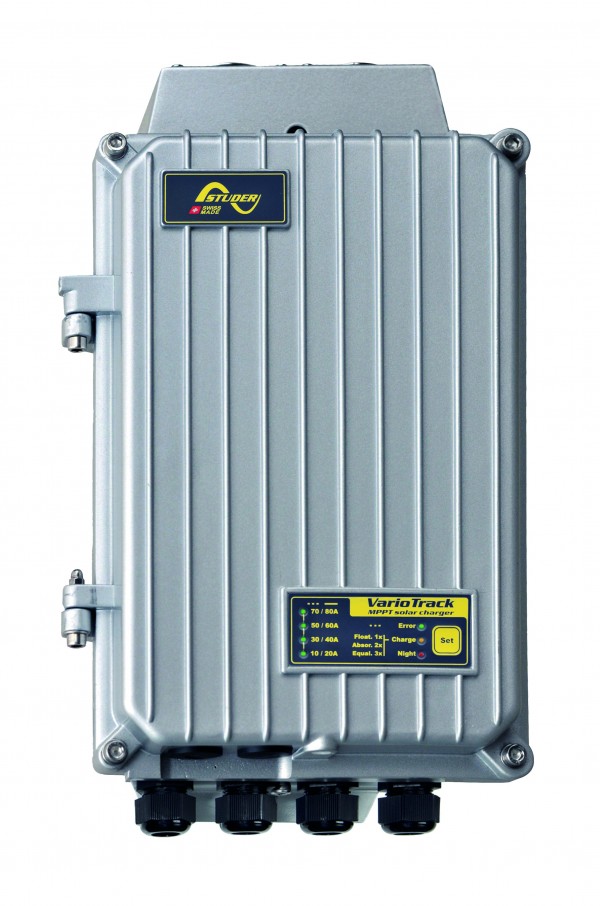

MPPT Solar Charge Controller
VarioTrack series VT-80
The VarioTrack family consists of 2 models of MPPT solar charge controllers for systems with solar PV capacity from 1 - 75kWp (with 15 in parallel), a PV input voltage up to 150Vdc, and 12, 24 or 48V battery banks.
With the MPPT solar charge controllers of the VarioTrack series, each installation is the best it can be with a maximized battery life due to an optimal charge.
A VarioTrack charge controller utilises a sophisticated algorithm that ensures the maximum available power from the solar PV modules is delivered to the batteries.
The device meets the highest industry standards, and due to the high ingress protection rating (IP54), it is especially robust and well suited for difficult environments. In addition, it is fully protected against reversed polarity.
The VarioTrack is designed to be used in all types of solar systems, and the combination of the VarioTrack + Xtender results in a highly efficient system. The communication between the devices permits the synchronisation of the battery charge cycle regardless of the technology (lead acid, lithium, nickel, etc...). Unlike other all-in-one hybrid solutions, the VarioTrack + Xtender allows to independently select the appropriate capacity of solar PV and inverter-charger, resulting in a more finely tuned system design.
|Model||Recommended PV power [W]||Battery voltage Unom [V]||PV voltage U [V]||Max charge current Imax [A]|
|VT-65||1000 (12V) 2000 (24V) 4000 (48V)||12 / 24 / 48||80 (12V) / 150 (24-48V)||80|
Features and performances
