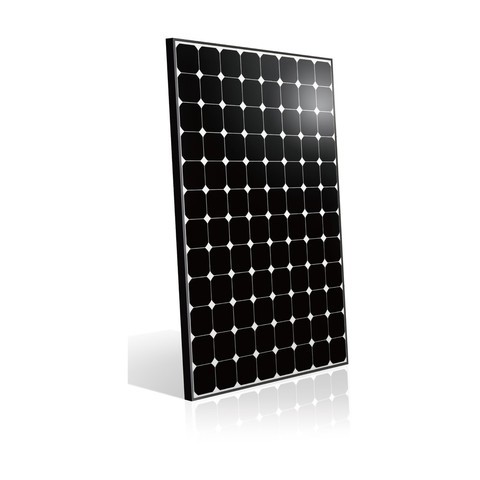

BenQ SunForte PM096B00 325Wp
General data:
• Efficiency: 19.9 %
• Wattage: 325 W
• Warranty: 10-year product guarantee
• Front Glass: High transparent solar glass(tempered) with AR-Tech, 3.2 mm
• 96 high efficiency back contact cells, 125 x 125 mm
• Frame: Anodizes aluminum frame
• Back Sheet: Composite film
• Junction Box: IP-67 rated with 3 bypass diodes
• Connector Type: MC4 compatible
Mechanical data:
• Dimensions (LxHxW) (mm): 1559x1046x46
• Weight (kg): 18,6
Electrical Characteristics (STC):
• Open Circuit voltage Voc (V): 64.9
• Short circuit current Isc (A): 6,39
• Maximum power voltage Vpm (V): 54.7
• Maximum power current Ipm (A): 5,94
• System Voltage (V DC): 1000
Maximum ratings:
• Operating Temperature: -40 ... +80°C
• Maximum System Voltage: 1000V
• Max. Surface Load Capacity: Tested up to 5400 Pa according to IEC 61215
• Maximum Series Fuse Rating: 20A
Warranty:
• 10 year product warranty
• Limited power warranty: 10 years at 95% of the minimal rated power output, 25 years at 87% of the minimal rated power output.
