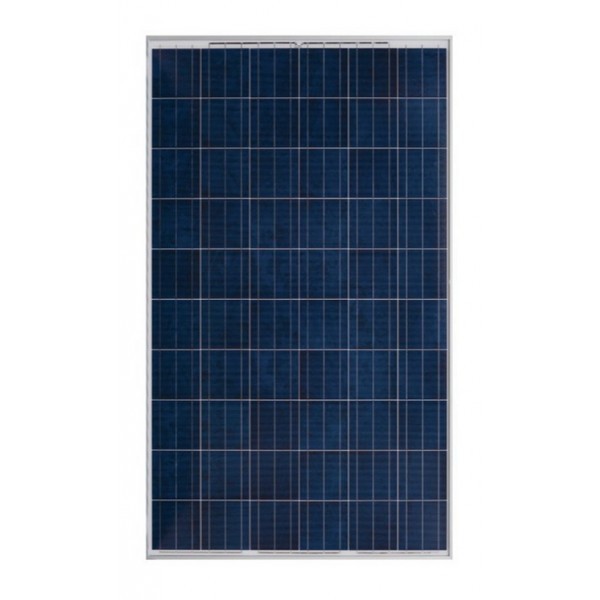

BenQ Green Triplex PM245P00 250Wp
General data:
• Efficiency: 15.5 %
• Wattage: 250 W
• Warranty: 10-year product guarantee
• Front Glass: High transparent solar glass(tempered), 3.2 mm
• Cell: 60 multicrystalline solar cells, 156 x 156 mm
• Cell Encapsulation: EVA
• Back Sheet: Composite film
• Junction Box: IP-67 rated with 3 bypass diodes
• Connector Type & Cables: TYCO PV4:1x4mm / YUKITA YS-254/YS-255:1x4mm
Mechanical data:
• Dimensions (LxHxW) (mm): 1639x983x40
• Weight (kg): 18,5
Electrical Characteristics (STC):
• Open Circuit voltage Voc (V): 37.4
• Short circuit current Isc (A): 8,69
• Maximum power voltage Vpm (V): 30.6
• Maximum power current Ipm (A): 8,17
• System Voltage (V DC): 1000
Maximum ratings:
• Operating Temperature: -40 ... +85°C
• Maximum System Voltage: 1000V
• Max. Surface Load Capacity: Tested up to 5400 Pa according to IEC 61215
• Maximum Series Fuse Rating: 15A
Warranty:
• 10 year product warranty
• Limited power warranty: 10 years at 90% of the minimal rated power output, 25 years at 80% of the minimal rated power output.
