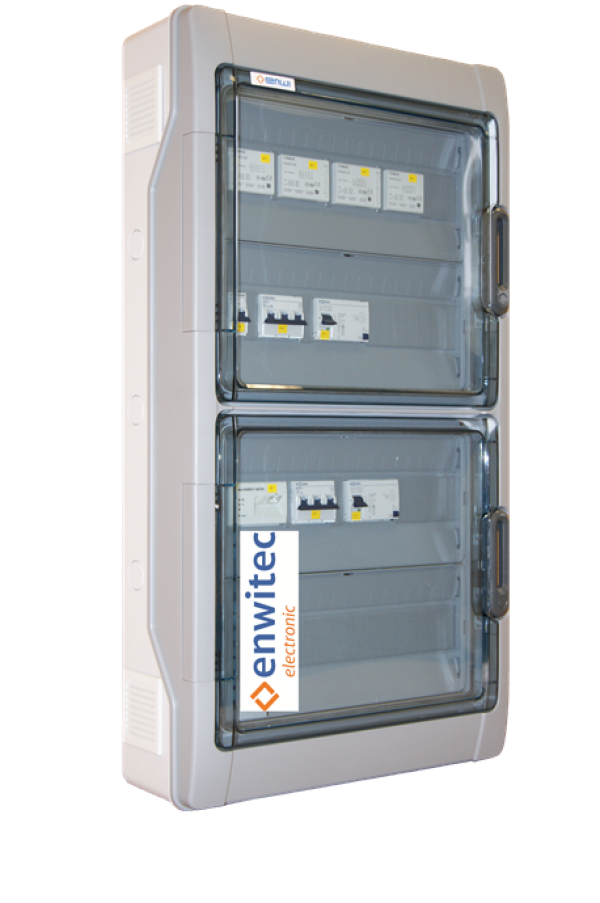

Enwitec Metering Switchbox for SMA SI 3phase
Enwitec Metering Switchbox for SMA Sunny Island 3phase with SMA Energy Meter
For
Sunny Island SI 3.0M-11 / SI 4.4M-11 from Firmware 3.2
Sunny Island SI 6.0H-11 / SI 8.0H-11 as of firmware 3.1
Article no.: 10010034
Compatible to: SMA.
Phases: 3 phase
Power Separation: All poles
Throughput: <= 35kW
Network form: TN-S, TT
NA protection: No
Sourceswitch: No
Nominal voltage: 230 / 400V
Rated frequency: 50 / 60Hz +/- 5%
Short circuit current: 6kA
Backup fuse: 63A
Operating temperature range: -25 ° C to + 40 ° C
Humidity: 5% to 70%
Protection class: II
Dimensions WxHxD (mm): 448x822x161 mm
Mass: Approx. 13 kg
Casing: IP44 (ventilation valves)
