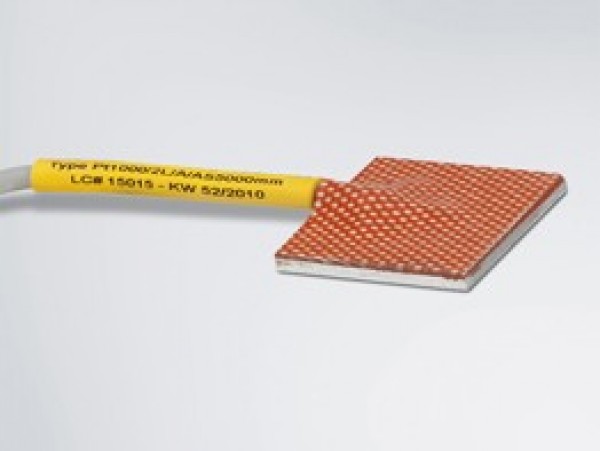

Fronius Module temperature Sensor
In general this sensor measures the temperature on surfaces. By fixing the sensor on the back side of the pv-module, the module temperature can be told.
The temperature of the pv-module is one of the decisive facts for the power output. By supervision, the pv-owner can draw conclusions to the performance of the power chart.
Technical data
| Sensor | PT1000 |
| Measuring range | -20°C to +150°C |
| Accuracy | ±0.8°C (in the range -20°C to 100°C) |
| Design | Sensor on an adhesive film for measurement on sheets |
| Dimensions | 50 x 100 mm |
| Cable | 3 m Cu-cable; silicon isolated, ferrules, UV-resistant |
| Max. cable lenghth (distance: Sensor Card/Box - sensor) |
20 m |
Mounting tip: It is recommended to fix the sensor and the cable with an additional adhesive tape.
