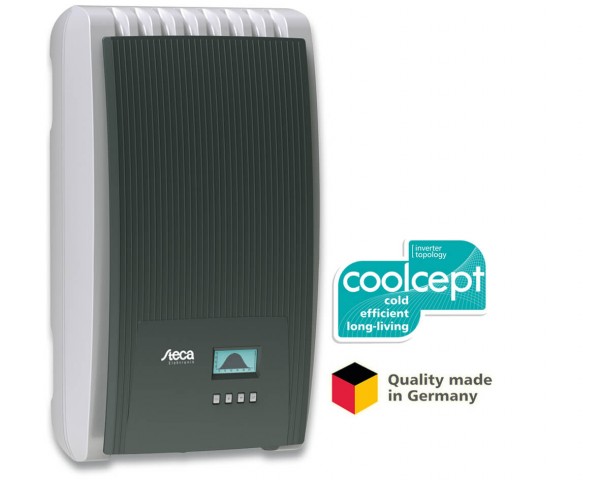

Steca StecaGrid 4003 Coolcept

Inverter topology
The coolcept inverter topology was first implemented in the single-phase StecaGrid. It achieved optimum efficiency ratings thanks to the innovative switching concept. The three-phase coolcept³ ​​inverters also benefit from the advantages of this switching concept. The three-phase topology is fully reactive current capable and therefore set up to meet demands that may be made in future as well.

Always symmetrical
The advantage of three-phase feeding is that the produced solar capacity is always symmetrically distributed on all three power conductors to the public power grid. This is the case across the whole output range offered by these inverters. The symmetrical feed-in is very much in the interests of the power supply companies, and is also compatible with domestic three-phase consumption.

Highest efficiency with longer service life
The high efficiency results in a peak efficiency of 98.6 %, which means that less power is lost that must be dissipated into the environment. This improves your yields.

As at least two phases of a three-phase feed-in design feed energy into the grid, it is not necessary to provide for intermediate energy storage in the device, as must be done in the case of single-phase feed-in. For this reason, the coolcept³ inverters dispense completely with the electrolytic capacitors that are required for intermediate storage. These capacitors may influence the service life of electronic devices as they may dry out. Therefore by using coolcept³ inverters, plant operators may expect to benefit from their long service lives.

In addition to this, a new and unique cooling concept inside the inverter ensures an even distribution of the dissipated ­heat and a long service life for the device.

Product design and visualisation
The StecaGrid has a graphical LCD display for visualising the energy yield values, current performance and operating parameters of the system. Its ­innovative menu allows individual selection of the various measurements. The guided, pre-programmed menu allows easy final commissioning of the device.

Installation
The lightweights with only 10 kg can be easily and safely mounted on a wall. The supplied wall bracket make mounting of the device simple and convenient. The device does not need to be opened for installation. All connections and the DC circuit breaker are externally accessible. For making DC connections, Sunclix mating connectors are included in the scope of supply.

Features

• Highest efficiency
• Three-phase, symmetrical grid feeding
• Simple installation
• Integrated data logger
• Low housing temperature at full load
• Lowest possible own consumption
• Integrated DC circuit breaker
• Protective insulation according to protection class II
• Very long service life
• Droop Mode for integration in hybrid systems
• Fixed voltage mode for other energy sources
• Up to 7-year free warranty after registration
• Optimised shadow management using global MPP tracking

Displays

•     Multifunction graphical LCD display with backlighting
•     Animated representation of yield

Operation

•     Simple menu-driven operation
•     Multilingual menu navigation
