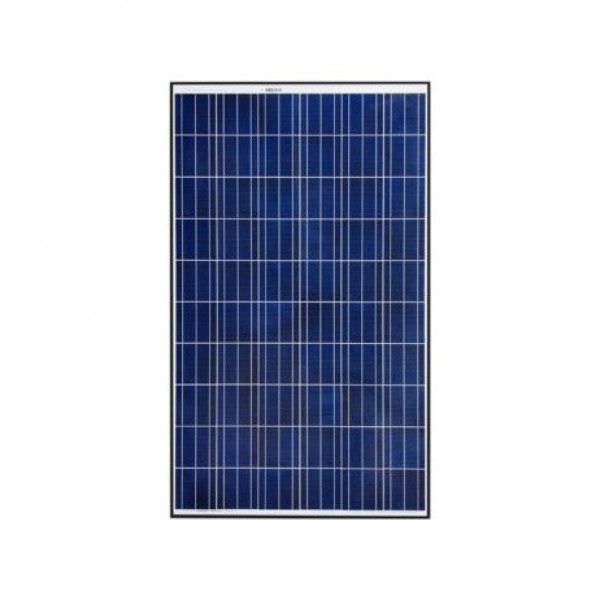

REC TwinPeak BLK SERIES
PREMIUM SOLAR PANELS WITH SUPERIOR PERFORMANCE

REC TwinPeak BLK Series solar panels feature an innovative design with high panel efficiency and power output, enabling customers to get the most out of the space used for the installation.Combined with industry-leading product quality and the reliability of a strong and established European brand, REC TwinPeak BLK panels are ideal for residential and commercial rooftops worldwide.

General data

• Cell type: 120 REC HC multi-crystalline 6 strings of 20 cells (6" x 3")
• Glass: 0.12" (3.2 mm) solar glass with anti-reflective surface treatment
• Back sheet: Double layer highly resistant polyester (white)
• Frame: Anodized aluminum (black)
• Junction box: 3-part with bypass diodes, IP67 rated 4 mm² solar cable, 35" + 47"
• Connectors: Multi-Contact MC4 (4 mm²)

Mechanical data

• Dimensions: 1665 x 991 x 38 mm
• Area: 1.65 m²
• Weight: 18 kg

Electrical data

• Nominal Power - PMPP (Wp) 205
• Nominal Power Voltage - VMPP (V) 29.5
• Nominal Power Current - IMPP (A) 6.97
• Open Circuit Voltage - VOC (V) 36.1
• Short Circuit Current - ISC (A) 7.50

Maximum ratings

• Operational Temperature: -40 ... +85°C
• Maximum System Voltage: 1000 V
• Design Load*: 75.2 lbs/ft² (3600 Pa)
• 33.4 lbs/ft² (1600 Pa) *Refer to installation manual
• Max Series Fuse Rating: 15 A
• Max Reverse Current: 15 A

Warranty

• 10 year product warranty
• 25 year linear power output warranty (max. degression in performance of 0.7% p.a.)
