High-performance photovoltaic modules made of polycrystalline (156.5 mm)² silicon solar cells with module efficiencies of 14.9%.

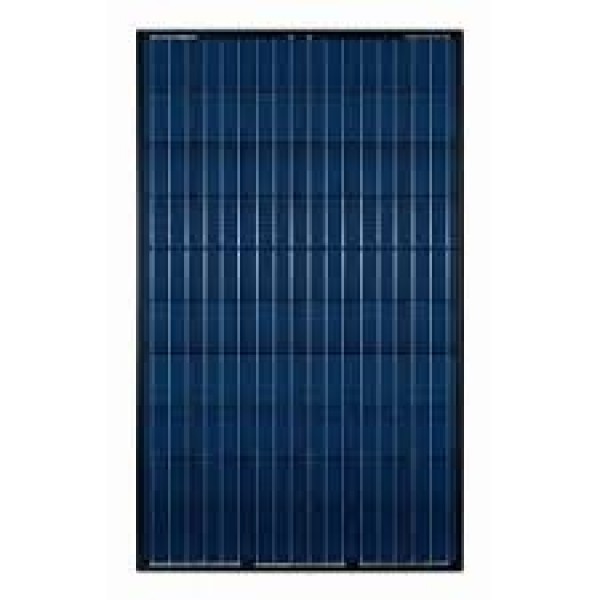

Sharp ND R 245 A6 Poly:
• High-performance photovoltaic modules made of polycrystalline (156.5 mm)² silicon solar cells with module efficiencies of 14.9%.
• 3 busbar technology for enhancing the power output.
• Anti-reflex coating to increase light absorption.
• Production controlled positive power tolerance from 0 to +5 %. Only modules will be delivered that have the specified power or more for high energy yield.
• Black module frame and black back sheet for aesthetic appearance.
• Improved temperature coefficient to reduce power losses at higher temperatures.
• High power performance even at lower irradiations.
General data:
• Efficiency: 14.9 %
• Wattage: 245 W
• Warranty: 10-year product guarantee
Mechanical data:
• Cell size (mm)²: 156,5
• No. of cells and connections: 60 in series
• Dimensions (LxHxW) (mm): 1652x994x46
• Weight (kg): 19
• Maximum mechanical load (N/m2): 2400
Electrical Characteristics:
• Open Circuit voltage Voc (V): 38,3
• Short circuit current Isc (A): 8,48
• Maximum power voltage Vpm (V): 30,3
• Maximum power current Ipm (A): 8,09
• System Voltage (V DC): 1000
Thermal coefficients and characteristics:
• αPm (%/°C): -0,440
• αIsc (%/°C): 0,038
• αVoc (%/°C): -0,329
• Operating temperature (°C): -40 to +90
• Storage temperature (°C): -40 to +90
• Storage air humidity (%): -
