Details

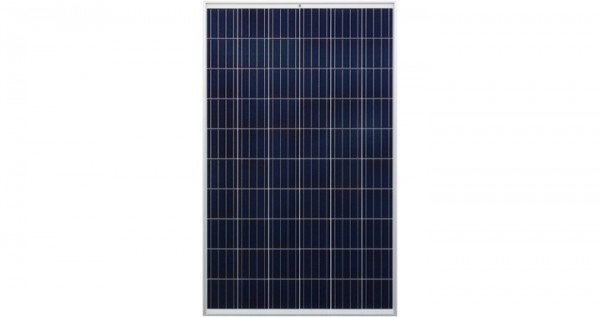

Polycrystalline photovoltaic module Sharp ND-RJ270
- 16.2% module efficiency
- Proven quality (TÜV IEC/EN 61215 + IEC/EN61730, Safety Class II, CE, Application class A, DIN EN 13501-01, class E)
- Robust product design (Ammonia and salt mist test passed)
- Superb test results (EUPD customer surveys)
- Reliable Guarantee (10 years product guarantee, 25 years linear performance guarantee)
- Guaranteed positive power tolerance (at least the specified value and up to 5 % more is achieved)
General:
| Nominal Output (Wp) | 270 |
| Module Efficiency (%) | 16.2 |
Mechanical data:
| Cell size (mm)² | 156 |
| No. of cells and connections | 60 in series |
| Dimensions (LxHxW) (mm) | 1654x989x40 |
| Weight (kg) | 18.2 |
| Maximum mechanical load (N/m2) | 2400 |
Electrical Characteristics:
| Open Circuit voltage Voc (V) | 31.04 |
| Short circuit current Isc (A) | 8.61 |
| Maximum power voltage Vpm (V) | 37.72 |
| Maximum power current Ipm (A) | 9.06 |
| System Voltage (V DC) | 1000 |
