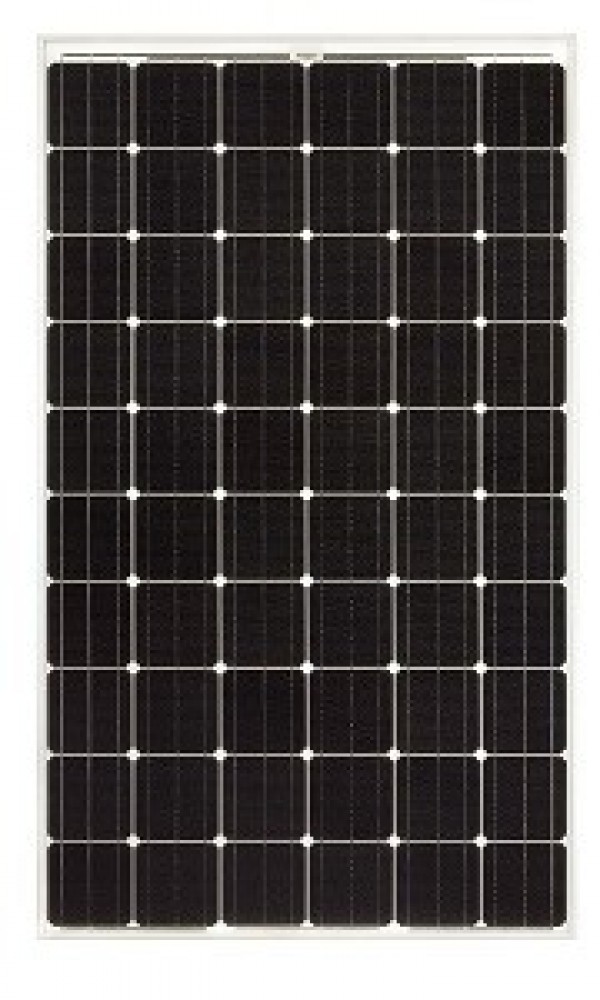

Monocrystalline photovoltaic module NU-RC300
High-performance photovoltaic modules made of monocrystalline (156.5 mm)² silicon solar cells.
- 3 busbar technology for enhancing the power output.
- Anti-reflex coating to increase light absorption.
- Production controlled positive power tolerance from 0 to +5 %.
- Only modules will be delivered that have the specified power or more for high energy yield.
- Improved temperature coefficient to reduce power losses at higher temperatures.
- High power performance even at lower irradiations.
Nominal Output (Wp) 300
Module Efficiency (%) 18,3
Mechanical data
Cell size (mm²) 156,5
No. of cells and connections 60 in Serie
Dimensions (LxHxB) (mm) 1660 x 990 x 50
Weight (Kg) 20
Maximum mechanical load (N/m²) 2400
Electrical data
Open Circuit voltage Voc (V) 36,3
Short circuit Isc (A) 8,07
Maximum power voltage Vpm (V) 28,5
Maximum power current Ipm (A) 7,72
System Voltage (V DC) 1000
