  • Sharp NU-RD280 Sharp NU-RD280

Sharp NU-RD280

Availability: Out of stock

€216.00
  • Buy 20 for €210.00 each and save 3%
  • Buy 27 for €206.00 each and save 5%
  • Buy 40 for €202.00 each and save 7%
  • Buy 54 for €199.00 each and save 8%

Details

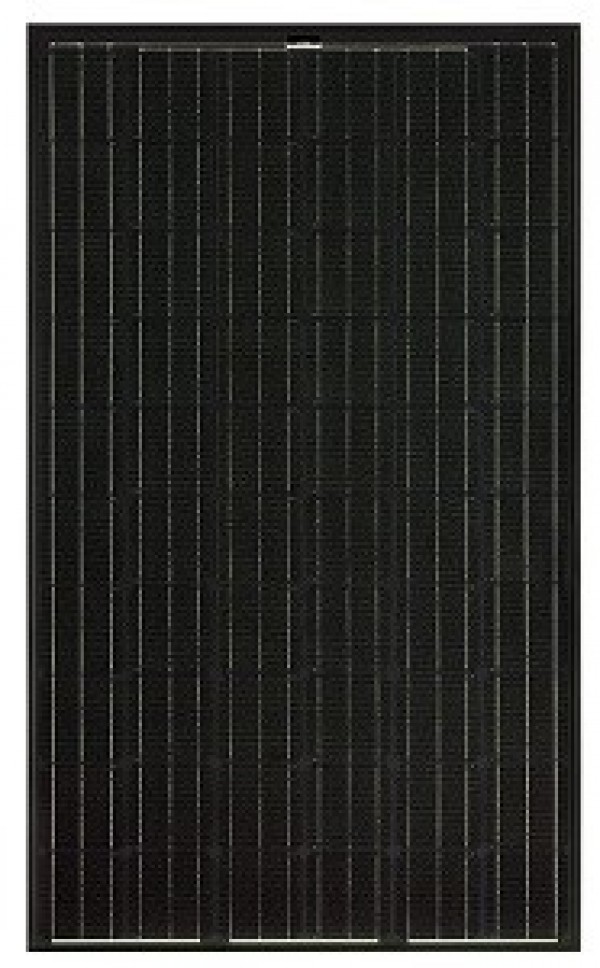

Monocrystalline photovoltaic module NU-RD280

High-performance photovoltaic modules made of monocrystalline (156.5 mm)² silicon solar cells.

 - black frame & black backsheet
 - 3 busbar technology for enhancing the power output.
 - Anti-reflex coating to increase light absorption.
 - Production controlled positive power tolerance from 0 to +5 %.
 - Only modules will be delivered that have the specified power or more for high energy yield.
 - Improved temperature coefficient to reduce power losses at higher temperatures.
 - High power performance even at lower irradiations.

Nominal Output (Wp) 280
Module Efficiency (%) 17,0

Mechanical data

Cell size (mm²) 156,5
No. of cells and connections 60 in series
Dimensions (LxHxB) (mm) 1660 x 990 x 50
Weight (Kg) 20
Maximum mechanical load (N/m²) 2400

Electrical data

Open Circuit voltage Voc (V) 39,2
Short circuit Isc (A) 9,67
Maximum power voltage Vpm (V) 31,2
Maximum power current Ipm (A) 8,97
System Voltage (V DC) 1000

More information:

  Sharp NU-RD280 Data sheet
  Sharp NU-RD280 Operating manual
  Sharp NU-RD280 Warranty
